Our Services Category

Hardware, Building Materials

Galvanized Hexagonal Wire Mesh, PVC Hexagonal Wire Mesh, Poultry Fence Net, Chicken Net

Galvanized Hexagonal Wire Mesh, PVC Hexagonal Wire Mesh, Poultry Fence Net, Chicken Net

YZW-002
Customers provide purchasing specification information: material, wire diameter, mesh size, length, width, quantity.

Consultation

Functional Features Technical Indicators Overall Dimension

Specifications:

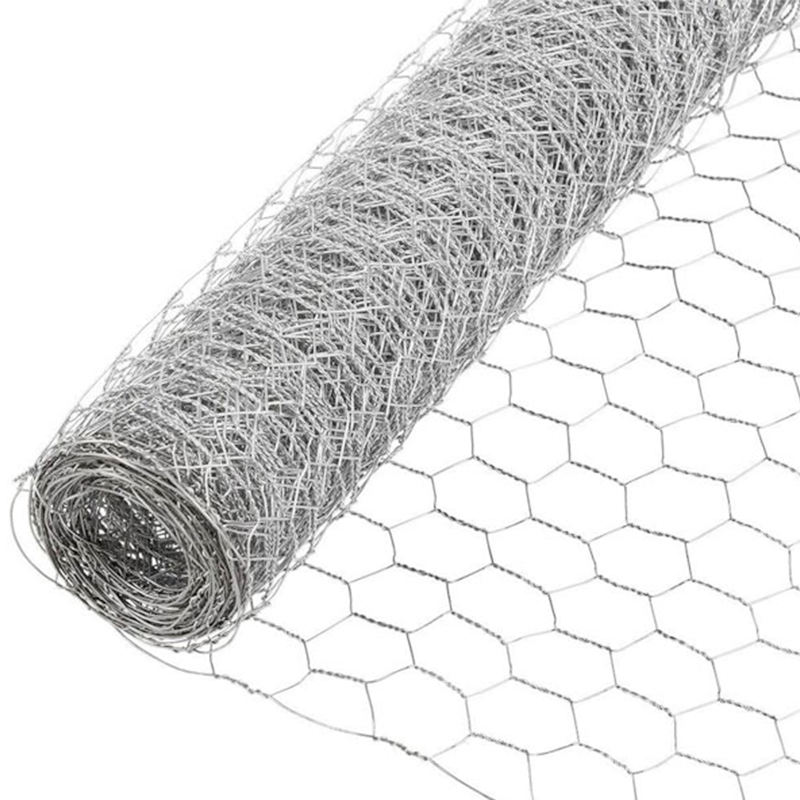

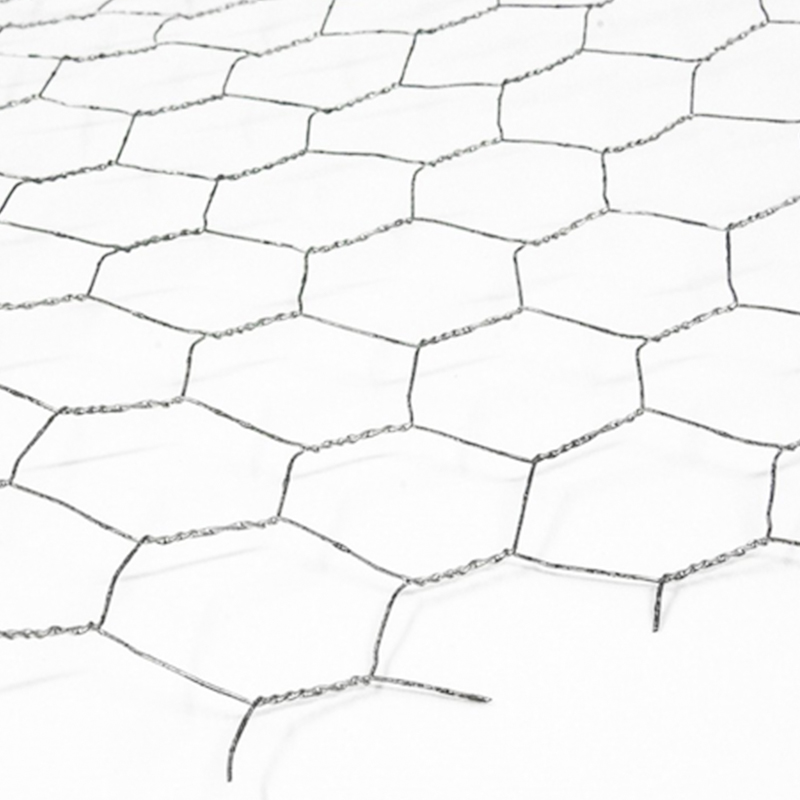

Galvanized hexagonal wire mesh
Mesh size		Wire gauge(BWG)
In inch	In mm	Wire gauge(BWG)
3/8’’	10mm	27 26 25 24 23 22 21
1/2’’	13mm	25 24 23 22 21 20
5/8’’	16mm	27 26 25 24 23 22
3/4’’	20mm	25 24 23 22 21 20 19
1’’	25mm	25 24 23 22 21 20 18
1-1/4’’	32mm	22 21 20 18
1-1/2’’	40mm	22 21 20 18 17
2’’	50mm	22 21 20 18 17 16 15 14
3’’	75mm	21 20 18 17 16 15 14
4’’	100mm	17 16 15 14

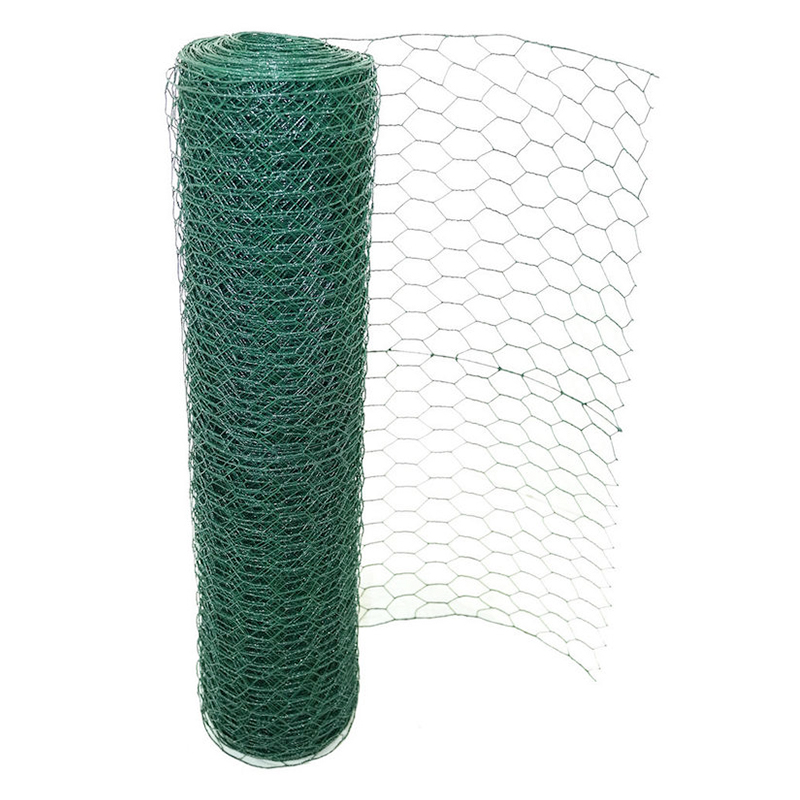

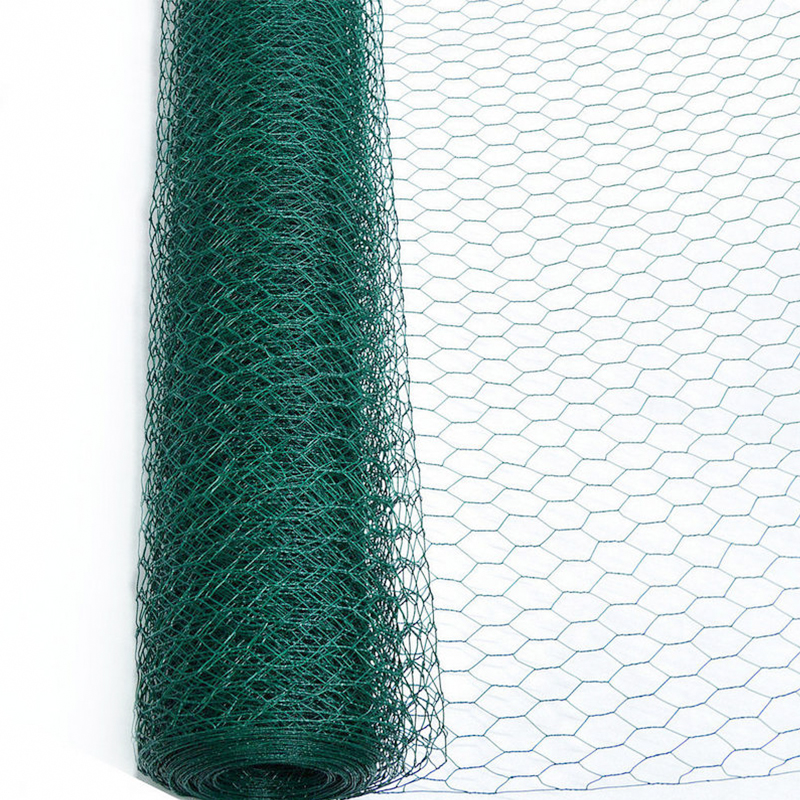

PVC coated hexaognal wire mesh
Mesh size		Wire diameter
In inch	In mm	Wire diameter
1/2’’	13mm	0.9mm 1.0mm
1’’	25mm	1.0mm 1.2mm 1.4mm
1-1/2’’	40mm	1.0mm 1.2mm 1.4mm 1.6mm
2’’	50mm	1.0mm 1.2mm 1.4mm 1.6mm

Hexagonal wire mesh is firm in structure and has flat surface. If is estensively used in building as reinforcement of the roof and floor. It is also used as fence for poultry cage, fish, garden and children playground.
